Arrowie Basin 1966-2003 Workstation Dataset

A workstation-ready dataset of 188 SEGY data files is available for the Arrowie Basin area of South Australia. The age range for these data is from 1966 to 2003.

All files have shotpoint numbers written at byte position 17 using 32-bit IBM floating point format.

X and Y coordinates are written at byte position 73 and 77 using 32-bit IBM integer format and all coordinates are referred to GDA 94 datum and UTM Zone 54.

TFS (time of first sample) values are written at byte position 109 using 16-bit IBM integer format.

There is only one version of each line, chosen on the basis that it was the longest, best and most recent version available - see the attached spreadsheet Arrowie Basin Seismic Line List (.XLS - 63 KB).

The purchase price for the entire data set is $500 plus GST.

To order your data or request further information please contact Peter Hough (email) or phone (08) 8463 3240.



Arrowie Basin 2D seismic lines with SEGY data

Please click the image below for a full scale version.

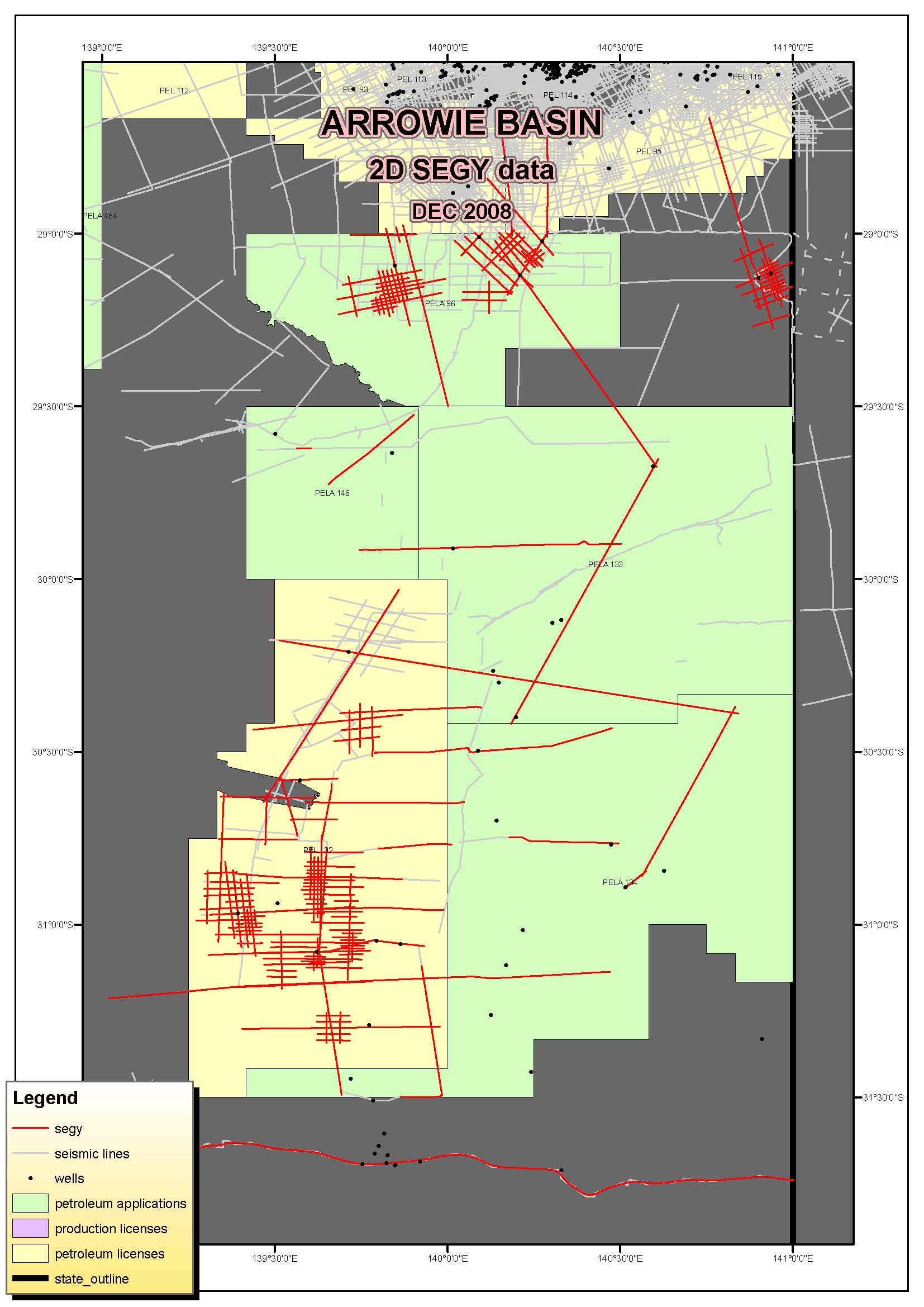

Arrowie Basin Workstation Dataset Map
