PEPS-SA Database

PEPS-SA (Petroleum and Geothermal Attribute Database)

PEPS-SA (Petroleum Exploration and Production System - South Australia) is a pc-based comprehensive relational database application containing a wide range of open-file technical data relevant to the petroleum and geothermal industry. For details and screen captures see below.



Introducing a new FREE downloadable version of PEPS-SA

(Windows version only)

A full set of data and software is available when extracted.

Once you have downloaded and extracted the files to your computer, you will need to install the BDE software found in the BDE directory prior to running PEPS-SA.

Please read the readme.pdf file in the Help folder for information on how to install PEPS-SA.

Download PEPS-SA from SARIG (.ZIP - 65 MB)

1. PEPS-SA is now a downloadable version of the PEPS-SA database which includes the following modules:

  • Engineering
  • Geology
  • Geophysics
  • Legislation
  • Tenement
  • Production
  • Wells
More detailed information on PEPS-SA content follows.

2. This new version of PEPS-SA does not include the Core Photo images, Thin Section Photo images or the MapInfo spatial data.  It is planned to make the images (2GB+) available on DVD.  Live GIS information can now be accessed and downloaded via SARIG.  The MapInfo datasets will be decommissioned once the last PEPS DVD data package has been sent to current subscribers in early 2010.

3. PEPS-SA is a stand-alone package written in-house using Delphi.  It includes powerful querying, exporting, reporting and graphing options.  The data is in Paradox 7 format. The key data elements are the petroleum well (~2,300) and the seismic line (~32,000). For each well/seismic line there may be thousands of attributes. There are seven key categories comprising 87 datasets.

4. Whilst every effort has been made to ensure the quality of the data and software supplied, PIRSA does not warrant that the data or software contain no errors.  Additionally, PIRSA shall not be in any way be liable for any loss or otherwise incurred as a consequence of using these products.

5.  We value input from our customers, so if you have any kind words, suggestions for improvements, problems or queries regarding PEPS-SA, then please email us at pirsa.petroleum@sa.gov.au.

PEPS-SA Content

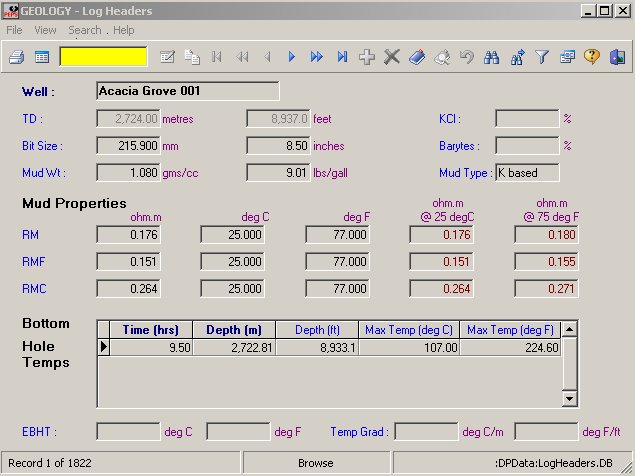

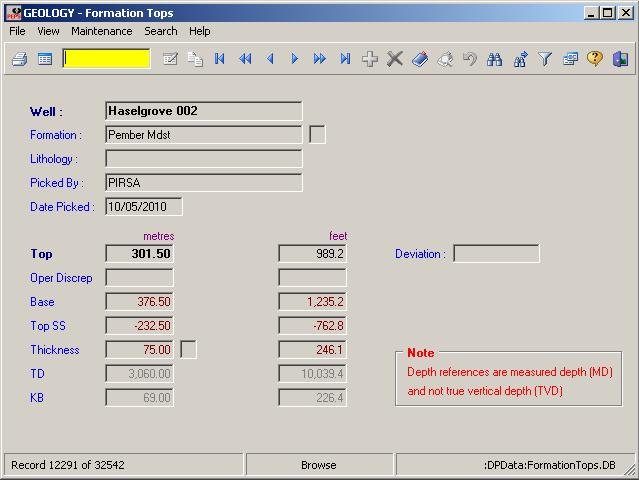

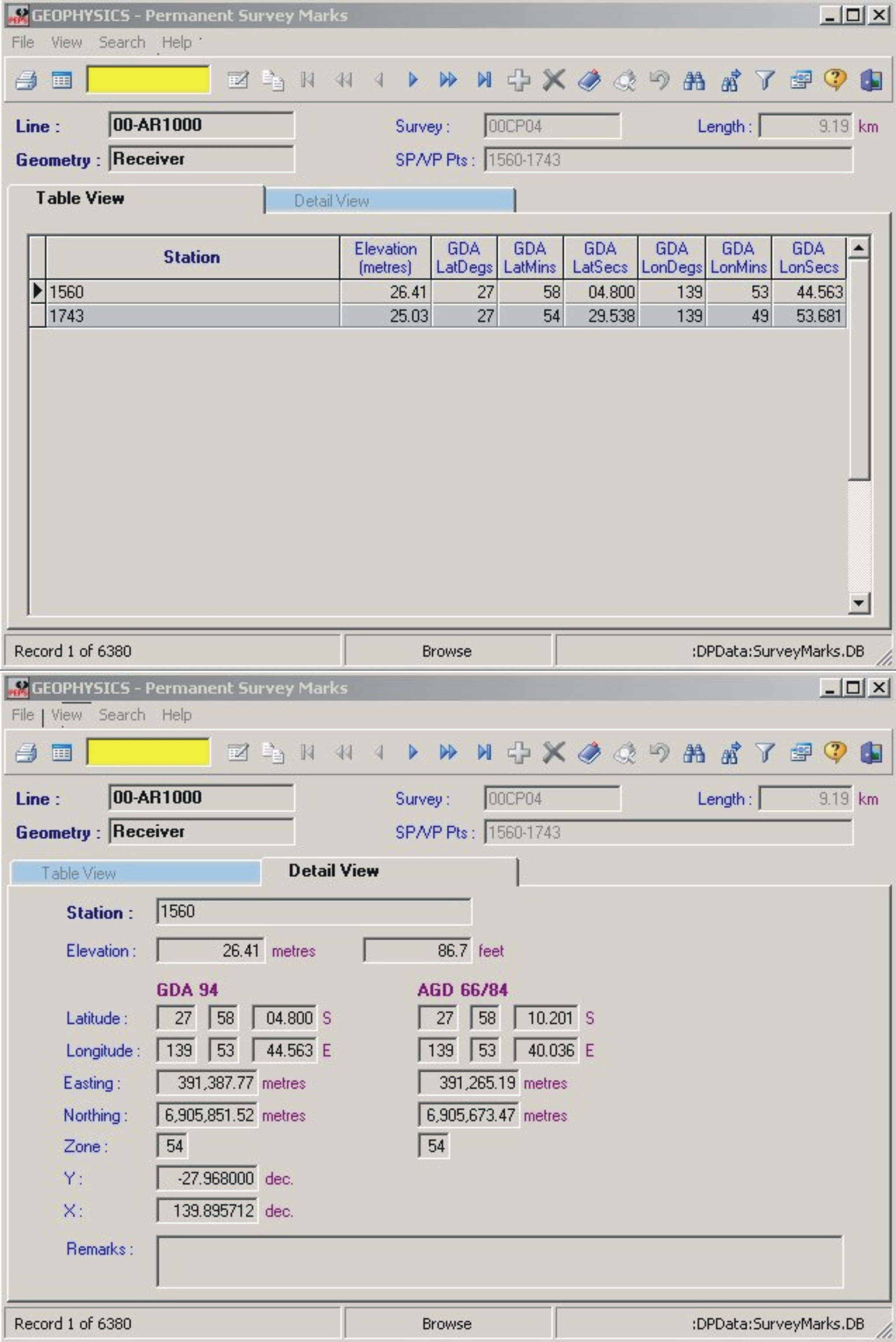

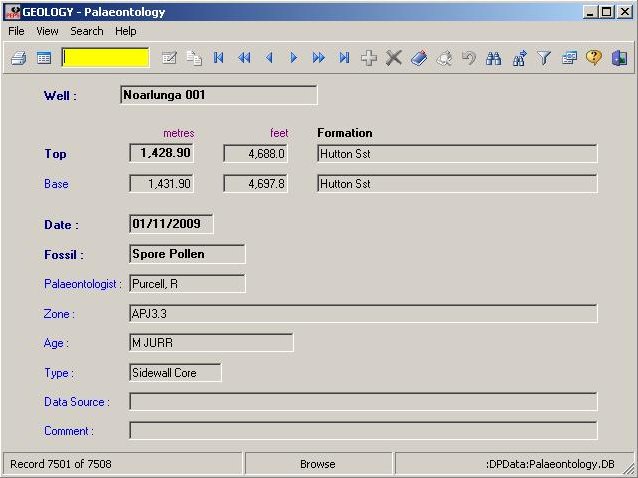

To highlight what PEP-SA offers, screen captures are available for viewing by clicking on the links below.
Note IE6 users please hover over image to enlarge

Engineering

Abandonments, casing details, formation tests (open and closed), liquid evaluation tests, perforations, pipeline sections, treatments, well analyses tests.

Geology

Core analyses, cores, cuttings, digital reports, formation tops, formations, hydrocarbon bulk composition, index to log paper prints, index of digital logs and bottom hole temperatures, palaeontology, Rock-Eval, aromatic and saturated hydrocarbon analyses, source rock extracts, thin sections, vitrinite reflectance.

Geophysics

Ancillary data, cartridge tapes, available seismic exabyte tapes (including raw field data and processed data), field tapes, seismic lines, seismic sections, seismic survey, surveys and lines, synthetic seismograms, seismic survey marks, seismic analog tapes, Upholes.

Legislation

BHP Indenture Act, Cooper Basin (Ratification) Act, Mines & Works Act, Mines & Works Regulations, Mining Act, Mining Regulations, Opal Mining Act, Opal Mining Regulations, Petroleum (Submerged Lands) Act 1967, Petroleum (Submerged Lands) Act 1982, Petroleum (Submerged Lands) Amend Act 2003, Petroleum (Submerged Lands) Legis. Amend Act 2001, Petroleum (Submerged Lands) Regulations, Petroleum & Geothermal Energy Act 2000, Petroleum & Geothermal Energy Regulations 2000, Petroleum Act & Regulations (old), Roxby Downs Act, Roxby Downs Regulations and link to the South Australian Legislation Website

Production

CO2 Otway, gas completions (including decline curves), gas deliverability (Cooper), gas field reservoir data, gas fields summary (including Production history, water ratio & history, completion days, average gas rates), gas summary (monthly and yearly production).

Oil completions (including decline curves,average oil rates, production graph), oilfield reservoir data, oil fields (including Production history, completion days), oil injection volumes, oil summary (monthly and yearly production).

Tenements

Access Authority (AA), Associated Facilities Licence (AFL), Exploration Permit Petroleum (EPP), Exploration Permit Petroleum SA (EPP-SA), Geothermal Exploration Licence (GEL), Geothermal Retention Licence (GRL), Oil Exploration Licence (OEL), Oil Prospecting Licence (OPL), Petroleum Exploration Licence (PEL), Pipeline Licence (PL), Petroleum Production Licence (PPL), Petroleum Retention Licence (PRL), Preliminary Survey Licence (PSL), Special Prospecting Authority (SPA) and Speculative Survey Licence (SSL).

Download digital tenement

Wells

Basic well data (latitude, longitude, TD, KB, status, classification etc), well completion reports (reference, scanned).

The following excel spreadsheet contains basic well information including spud date, rig release, status, basin, TD, KB, Lat/ Long, Eastings and Northings and well completion report scanning status.

Download basic well information
