PRIMARY INDUSTRIES AND RESOURCES SOUTH AUSTRALIA

SARIG Metadata

Parks and Reserves - Restricted Mineral Exploration Access

Citation

Unique Record ID: ANZSA1022000040

Title: Parks and Reserves - Restricted Mineral Exploration Access

Originator:

Custodian: Department for Environment and Heritage

Jurisdiction: South Australia

Description

Abstract:

These are the DCDB Parcels dedicated to conservation within South Australia. These areas protect both the fauna and flora species and are a major 'biological reservoir' for the maintenance of species diversity. This data set provides an accurate location for the legal boundary of reserves dedicated under the National Parks and Wildlife Act 1972 in South Australia. Properties included in this dataset are those where access is permitted for mineral exploration.

ANZLIC Search Words:

BOUNDARIES Administrative

INDUSTRY Mining

LAND Ownership

LAND Use

LAND Conservation

Spatial Domain:

Geographic Extent Name:

South Australia

Geographic Extent Polygon:

129 -38.5, 129 -26, 141 -26, 141 -38.5, 129 -38.5

Bounding Coordinates:

North Bounding Coordinate: -26

South Bounding Coordinate: -38.5

East Bounding Coordinate: 141

West Bounding Coordinate: 129

Data Currency

Beginning Date: 27APR1972

Ending Date: Current

Dataset Status

Progress: Complete

Maintenance and Update Frequency: Continual

Access

Stored Data Format:

Digital ArcInfo 8.0.2, vector data, geographicals GDA94

Available Format Type:

Digital ARC/INFO

Digital DXF

Digital MapInfo

Non-Digital Plotted maps

Access Constraints:

No restrictions - subject to license agreement. Require acknowledgement of data source, ownership of digital data is not transferred and digital data is not to be supplied to any third party.

Data Quality

Lineage:

Source Data History: In 2001 a new procedure was implemented where all of the Government Gazette notices creating, adding to or abolishing land from parks were scanned and entered into a database. These textual data containing land parcels proclaimed as a new park, or an addition to a park, are then combined with the corresponding spaial object from the DCDB to generate a spatial table of all land parcels that constitute a park or reserve within the DEH reserves system.

Processing Steps: This dataset has been queried to show only parks and reserves where mineral exploration access is permitted.

Positional Accuracy:

Data was captured using Cadastral (DCDB) data for appropriate area. Positional accuracy varies to cadastral base - 1:100,000 is quoted.

Attribute Accuracy:

Attribute information is obtained from the Protected Areas Information System (PAIS) and is assumed to be correct at the time this data set was last refreshed. Mining and petroleum access information is summarised from the Government Gazette but does not provide a legal definition of the access for mining exploration and production. This information is only reliably available from the actual Gazette.

Logical Consistency:

ESRI ARC/INFO GIS software was used to do topological consistency checks to detect flaws in the spatial data structure, this check ensured that all classified polygons are closed, nodes are formed at the intersection of lines and that there is only one label in each polygon.

Completeness:

Data set is complete. The most recent park addition was gazetted on 24th July 2008.

Contact Information

Contact Organisation: Department for Environment and Heritage

Contact Position: Land Administration, DEH - Conservation Policy and Programs

Postal Address: GPO Box 1047

City: ADELAIDE

State: SA

Country: Australia

Postcode: 5001

Telephone: 08 8124 4908

Facsimile: 08 8124 4789

Electronic Mail Address: morten.faye@saugov.sa.gov.au

Metadata Information

Metadata Date: 24FEB2009

Metadata Reference: www.asdd.sa.gov.au/asdd/ANZSA1022000040.html

Supplementary Information

Refer to additional user information on their web site.

Responsible Party

Responsible: Custodian / Steward

Description

Dataset Classification: Principal Version

Spatial Representation Type: Vector

Feature Type: Polygon

Dimension: x, y

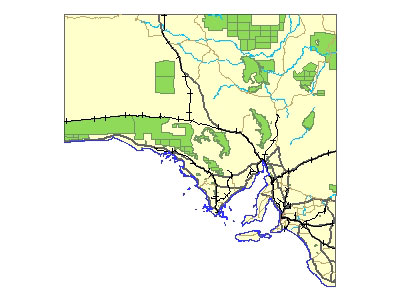

Sample Graphic:


Usage

Purpose:

To provide an authoritative register of property owned, controlled or managed by National Parks and Wildlife SA.

Use:

Delineate the extent and status of the parks and reserves system. Used by the mineral industry to determine accessibility of land for resource exploration and possible production.

Use Limitation:

None known.

Dataset Associations

Dependant Dataset Title:

Digital Cadastre

Attribute Information:

Attribute Table Type: Vector - Polygon

Attribute Name Attribute Type Attribute Description Attribute Completeness % Attribute Reliability %
PROP_ID Integer Property Identifier 90 90
PARK_ID Integer Park Identifier 90 90
PLAN_T Character Parcel Plan Type is an alpha character identifying the plan, i.e. C= Community Plan, D = Deposited Plan, E = Enrolled Plan, F = Filed Plan, G = GRO Plan, H = Hundred Plan, R = Road Plan, S = Strata Plan and T = Town Plan. 90 90
PLAN Character Parcel Plan Number, unique for a particular type of plan. 90 90
PARCEL_T Character The parcel type is an alpha character identifying the parcel status, i.e. A = Allottment, B = Block, C = Closed Road, F = Lot in a Community Plan, G = Pieces, I = Development Lot, Q = Piece, S = Section, T = Town Acre and U = Unit. 90 90
PARCEL Character The number of the parcel. 90 90
PARCEL_ID Character PARCEL_ID is a concatenation of the PARCEL_T and the PARCEL fields. 90 90
NT_STATUS Character Native Title Status
GAZ_ID Integer Unique identifier sourced from PAS 90 90
GAZ_DATE Date Date Park Property was gazateered 90 90
PROCPURPOSE Character Purpose for which the park parcel was proclaimed 90 90
MINE_GAZID Integer Unique Identifier sourced from PAS 90 90
MINE_DATE Date Date mining was proclaimed for parcel as per Gazette 90 90
PROCPURPOSE Character Purpose for which the park parcel was proclaimed 90 90
MINING Rights for mining/exploration under Mining Act where:
  • NONE = No rights for entry, prospecting, exploration or mining under the Mining Act.
  • EXISTING = Existing (i.e. pre-gazettal) rights of entry, prospecting, exploration or mining under the Mining Act may continue to be exercised but there is no provision for future rights.
  • FUTURE = Provision for entry, prospecting, exploration or mining rights to be acquired in the future pursuant to the Mining Act.
  • BOTH= Both existing and future rights for entry, prospecting, exploration or mining pursuant to the Mining Act apply.
 90 90
PETROLEUM Rights for mining/exploration under Petroleum Act where:
  • NONE = No rights for entry, prospecting, exploration or mining under the Petroleum Act.
  • EXISTING = Existing (i.e. pre gazettal) rights of entry, prospecting, exploration or mining under the Petroleum Act may continue to be exercised but there is no provision for future rights.
  • FUTURE = Provision for entry, prospecting, exploration or mining rights to be acquired in the future pursuant to the Petroleum Act.
  • BOTH= Both existing and future rights for entry, prospecting, exploration or mining pursuant to the Petroleum Act apply.
 90 90
JOINT_PROC Integer Joint Proclamation (Yes/No) 90 90
RESNAME Character Reserve name 90 90
RESTYPE Character Reserve type identifier, forms first 2 characters of code. eg: CP = Conservation Park, CR = Conservation Reserve 90 90
RESCODE Integer Unique reserve identifing code 90 90
BLOCKNR Character The blocknr (block number) is used to identify individual non-contiguous blocks of land within a single park. The block number identifier is used in the Reserves databse in Oracle. 90 90
RESNAMETYPE Character Concatenation of RESNAME and RESTYPE eg Wills Creek (CP) 90 90
UNIQUEID Character Concatenation of RESTYPE, RESCODE & BLOCKNR 90 90
PARENTID Character Concatenation of RESTYPE & RESCODE 90 90
IUCN_CAT Character Internationally defined set of management categories, known as IUCN (World Conservation Union) categories. 90 90

Origin

Dataset Size: 1-4 Mb

Projection: Geographicals

Datum: Geocentric Datum of Australia (GDA94)

Metadata Management

Date Modified: 23JUN2009

Modified Officer: Bird, Russell

Date Authorised: 23JUN2009

Authorisation Officer: Bird, Russell
